环境光

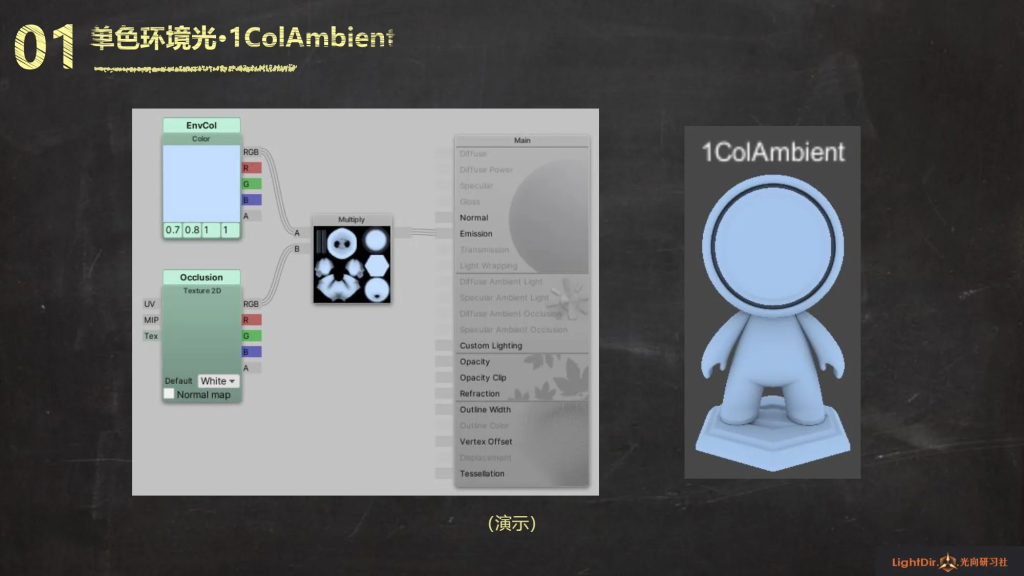

单色环境光-1ColAmbient

环境光颜色直接乘上AO贴图

---

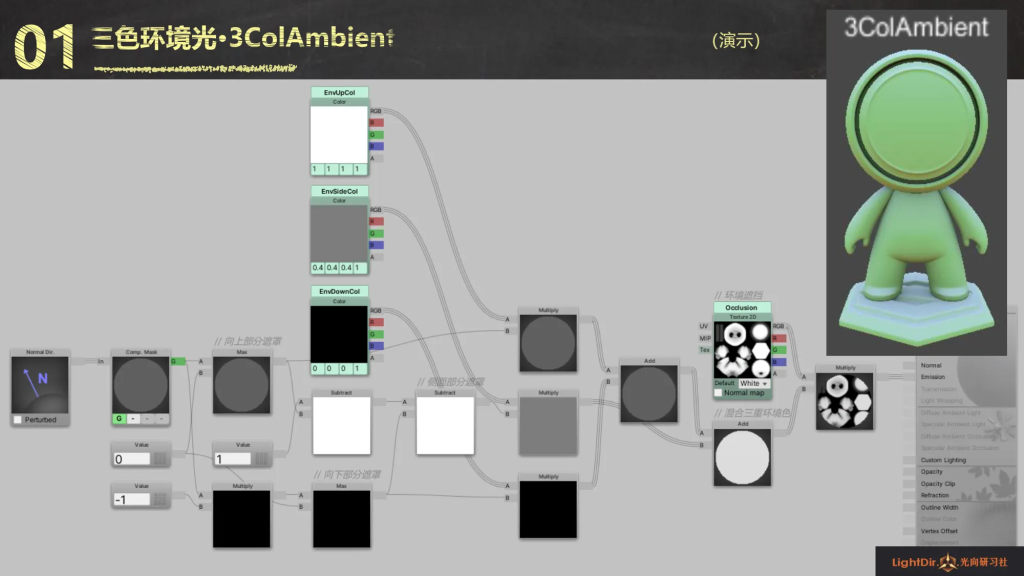

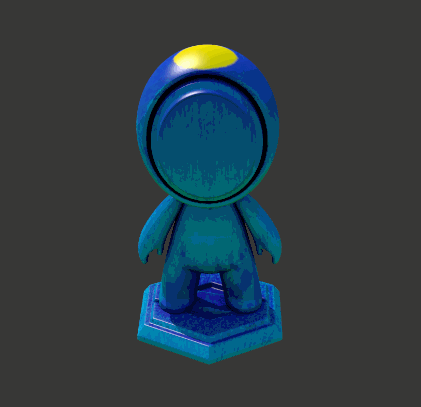

三色环境光-3ColAmbient

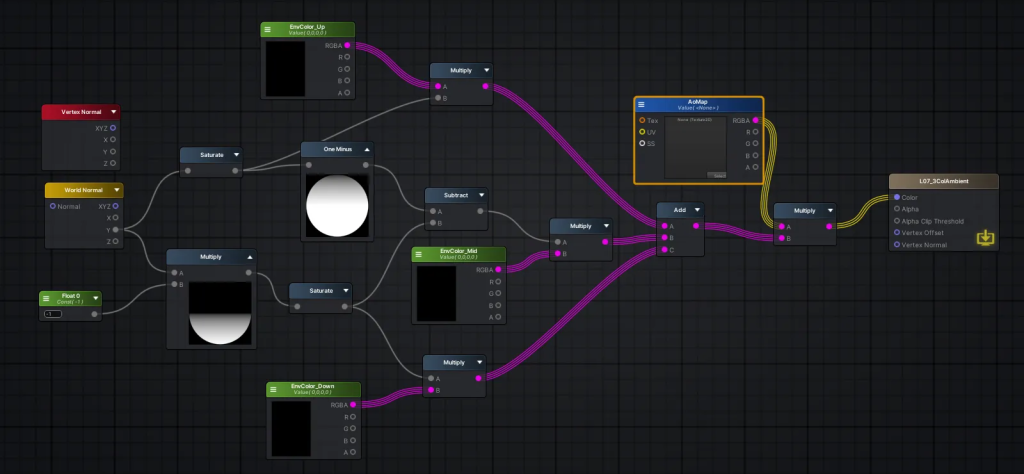

三层：

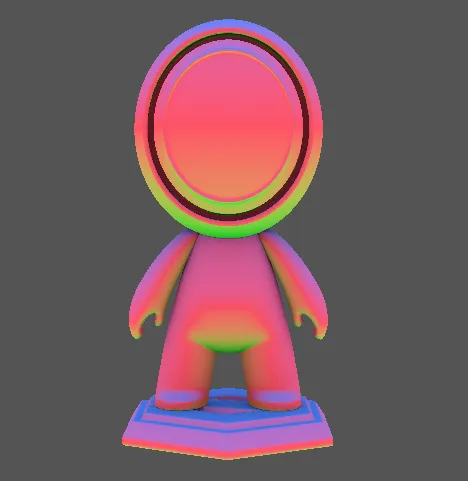

• WorldNormal，向上方向
• WorldNormal，向下方向，g通道（y）乘上-1
• WorldNormal，1-向上方向-向下方向，中间的遮罩
• 三个遮罩分别乘上三层颜色，加起来乘上AO贴图

---

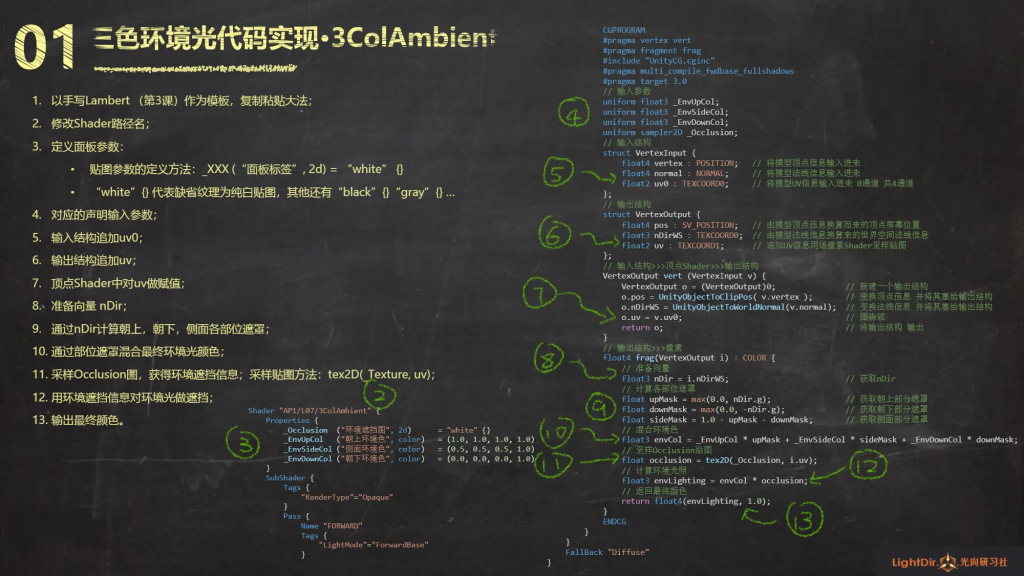

三色环境光-代码实现

直接贴代码，效果相同

Shader "AP01/L07/L07_3ColAmbientCode"
{
    Properties
    {
        _EnvCol_Up("EnvCol_Up",Color) = (1.0,1.0,1.0,1.0)
        _EnvCol_Mid("EnvCol_Mid",Color) = (1.0,1.0,1.0,1.0)
        _EnvCol_Down("EnvCol_Down",Color) = (1.0,1.0,1.0,1.0)
        _AoMap("AO Map",2d) = "white" {}
    }
    SubShader
    {
        Tags { "RenderPipeline" = "UniversalPipeline" "RenderType"="Opaque" }

        HLSLINCLUDE
        #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
        #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"

        CBUFFER_START(UnityPerMaterial)
        float4 _AoMap_ST;
        float4 _EnvCol_Up;
        float4 _EnvCol_Mid;
        float4 _EnvCol_Down;

        CBUFFER_END

        TEXTURE2D(_AoMap);
        SAMPLER(sampler_AoMap);

        struct a2v
        {
            float4 vertex       : POSITION;
            float2 texcoord     : TEXCOORD0;
            float3 normal       : NORMAL;
        };

        struct v2f
        {
            float4 pos          : SV_POSITION;
            float2 uv           : TEXCOORD0;
            float3 normal  : TEXCOORD1;
        };
        ENDHLSL

        Pass
        {
            HLSLPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            sampler2D _MainTex;
            float4 _MainTex_ST;

            v2f vert (a2v v)
            {
                v2f o;
                o.pos = TransformObjectToHClip(v.vertex);
                o.uv = TRANSFORM_TEX(v.texcoord, _AoMap);
                o.normal = TransformObjectToWorldNormal(v.normal);
                return o;
            }

            float4 frag (v2f i) : SV_Target
            {
                float3 normalDir = i.normal;
                float UpDir = saturate(normalDir.y);
                float DownDir = saturate(mul(normalDir.y,-1));
                float MidDir = 1- UpDir - DownDir;

                float4 AOMap = SAMPLE_TEXTURE2D(_AoMap,sampler_AoMap,i.uv);

                float3 UpColor = _EnvCol_Up * UpDir;
                float3 DownColor = _EnvCol_Down * DownDir;
                float3 MidColor = _EnvCol_Mid * MidDir;

                float3 finalColor = (UpColor + DownColor + MidColor)*AOMap;

                //return AOMap;
                //return float4(AOMap,1.0);
                return float4(finalColor,1.0);
            }
            ENDHLSL
        }
    }
}

---

投影

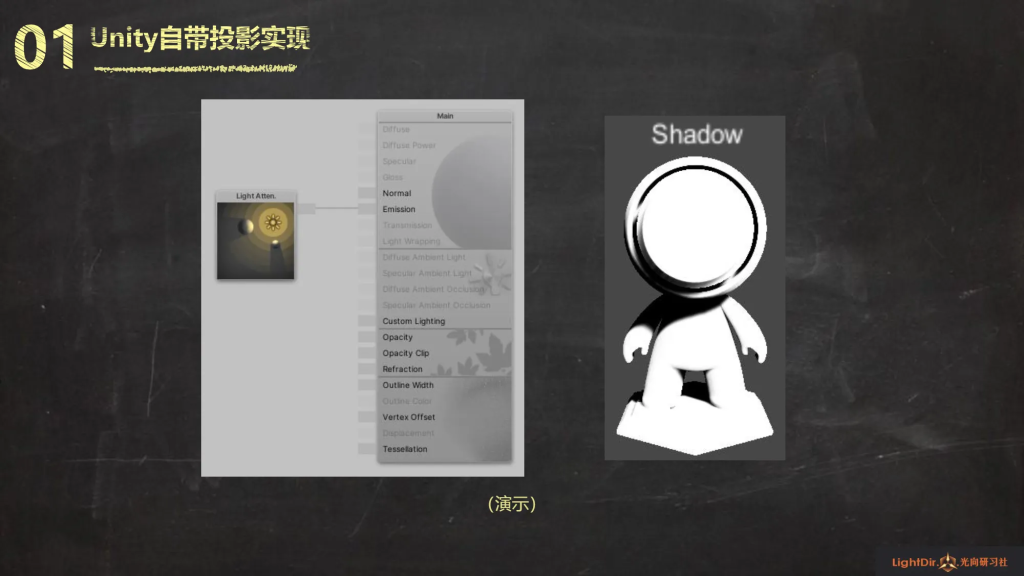

Unity自带投影实现

Ase中同名

代码实现

内置管线

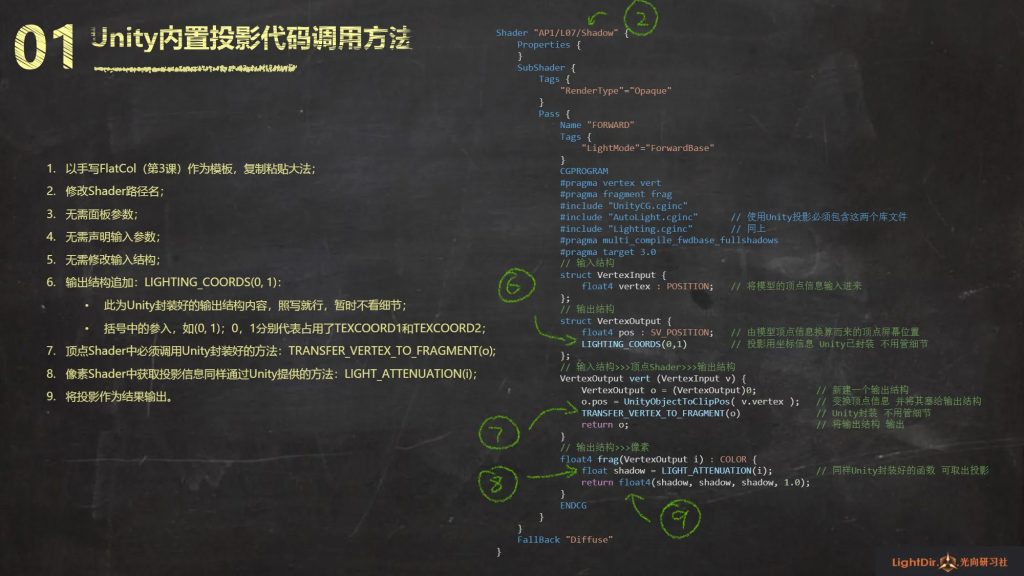

• 输出结构追加：LIGHTING_COORDS(0, 1)

• 此为Unity封装好的输出结构内容，照写就行，暂时不看细节；
• 括号中的参入，如(0, 1)；0,1分别代表占用了TEXCOORD1和TEXCOORD2；

• 顶点Shader中必须调用Unity封装好的方法：TRANSFER_VERTEX_TO_FRAGMENT(o);
• 像素Shader中获取投影信息同样通过Unity提供的方法：LIGHT_ATTENUATION( i );

URP管线

URP管线下实现阴影的方法和内置管线有所区别：

1. 添加 接收阴影关键字

2. 计算 阴影贴图

//方法1
//在输出结构中 定义好ShadowTexcoord
struct v2f
{
  float4 pos:SV_POSITION;
  float2 uv:TEXCOORD0;
  float3 worldPos:TEXCOORD1;
  float3 worldNormal:TEXCOORD2;
  float3 worldViewDir:TEXCOORD3;
  float4 shadowTexcoord:TEXCOORD4;
};
//VertexShader中 计算ShadowTexcoord

//1 通过VertexPositionInputs使用GetShadowCoord()计算
VertexPositionInputs vertexInput = GetVertexPositionInputs(v.vertex);
o.shadowTexcoord = GetShadowCoord(vertexInput);

//2 通过WorldPos，使用TransformWorldToShadowCoord()计算
o.shadowTexcoord=TransformWorldToShadowCoord(o.worldPos);

//fragShader中，得到光照衰减
//1
Light myLight=GetMainLight(i.shadowTexcoord);
float shadow = myLight.shadowAttenuation;

//2
float shadow = MainLightRealtimeShadow(shadowCoord)

//计算漫反射时，乘上shadowAttenuation
half4 mainColor=(diffuse*shadow+specular);

3. 在下面增加一段代码调用unity的阴影Shader

UsePass "Universal Render Pipeline/Lit/ShadowCaster"

参考：

URP | 物体阴影 – 哔哩哔哩

OldSchool+

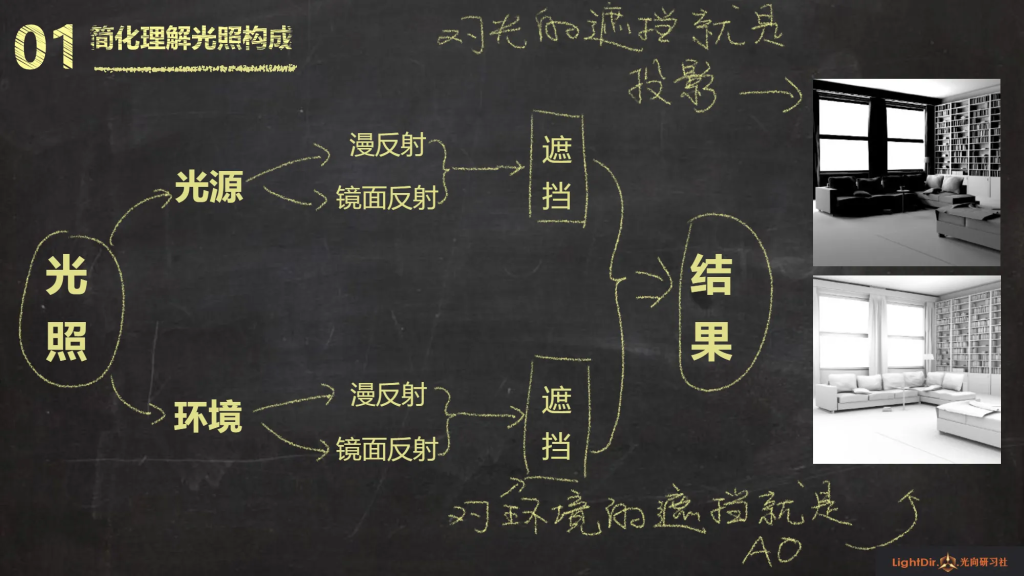

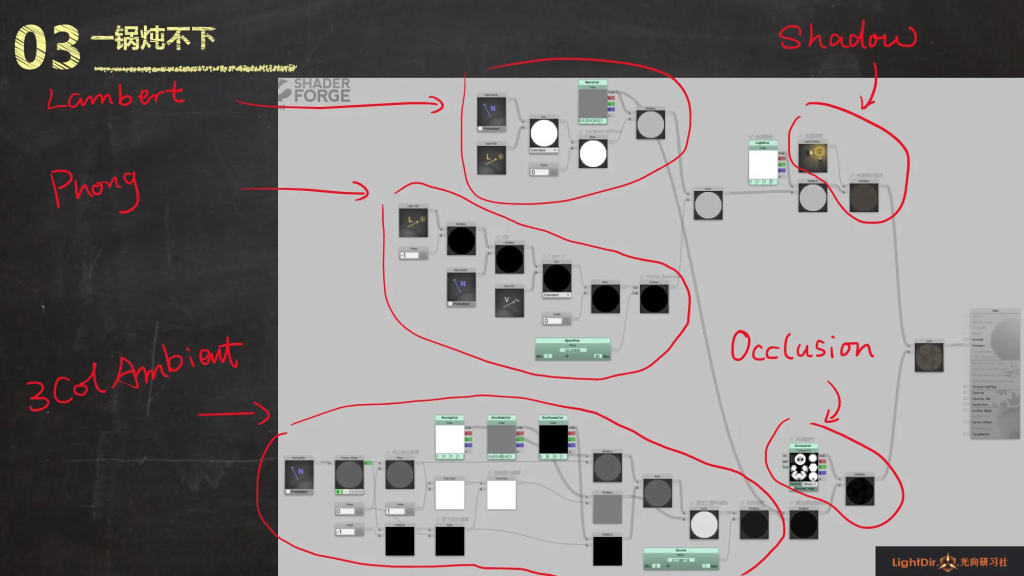

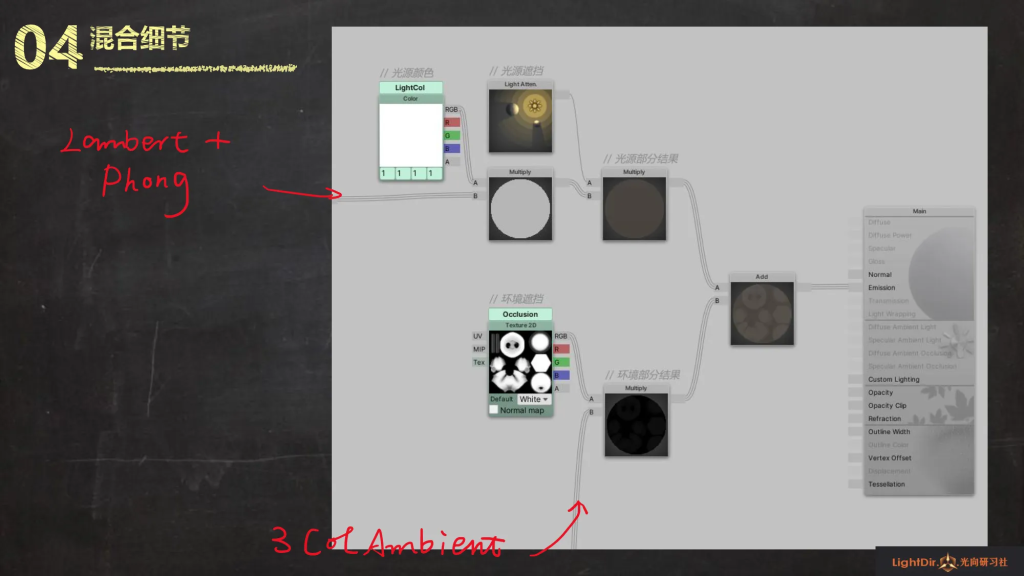

光照构成

---

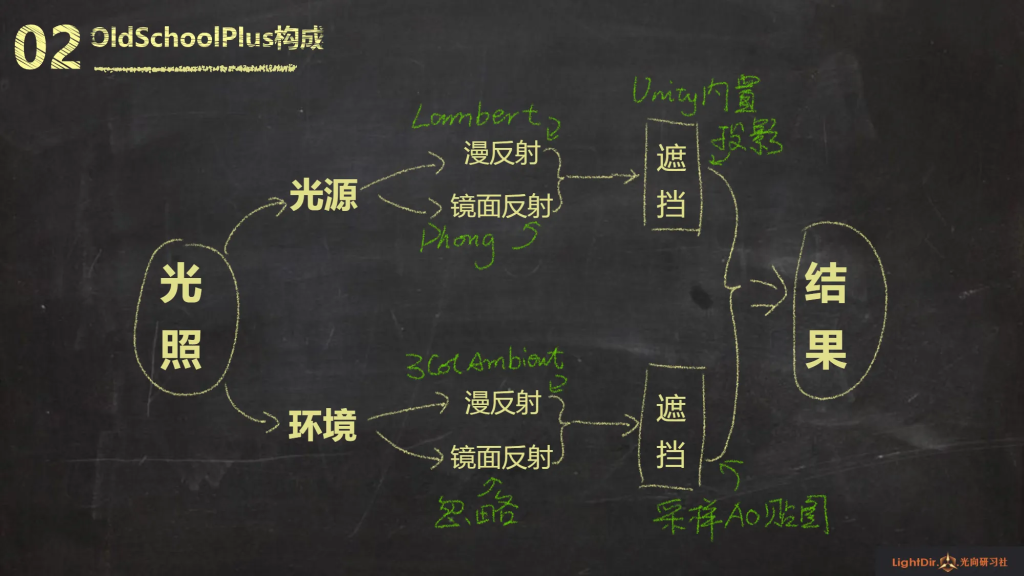

OldSchoolPlus构成

连连看

---

作业

Shader "AP01/L07/OldSchoolPlus"
{
    Properties
    {
        _MainTex ("MainTex", 2D) = "white" {}
        _AOMap("AO Map",2D) = "white" {}
        _BaseColor ("Base Color", Color) = (1,1,1,1)
        _SpecularColor ("Specular Color", Color) = (1, 1, 1, 1)
        _SpecularIntensity ("Specular Intensity", Range(0, 10)) = 0.5

        _SpecularRange("Gloss",Range(8,128))=20

        _EnvCol_Up("EnvCol_Up",Color) = (1.0,1.0,1.0,1.0)
        _EnvCol_Mid("EnvCol_Mid",Color) = (1.0,1.0,1.0,1.0)
        _EnvCol_Down("EnvCol_Down",Color) = (1.0,1.0,1.0,1.0)
        _EnvIntensity ("Env Intensity", Range(0, 1)) = 0.5
    }
    SubShader
    {
        Tags
        {
            "RenderPipeline" = "UniversalPipeline"
            "RenderType"="Opaque"
        }
        HLSLINCLUDE
        #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
        #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"
        #pragma multi_compile _ _MAIN_LIGHT_SHADOWS
        #pragma multi_compile _ _MAIN_LIGHT_SHADOWS_CASCADE
        #pragma multi_compile _ _SHAODW_SOFT

        CBUFFER_START(UnityPerMaterial)
        half4 _MainTex_ST;
        half4 _AOMap_ST;
        float4 _BaseColor;
        float4 _SpecualrColor;
        float _SpecularRange;
        float _SpecularIntensity;

        float4 _EnvCol_Up;
        float4 _EnvCol_Mid;
        float4 _EnvCol_Down;
        float _EnvIntensity;
        CBUFFER_END

        TEXTURE2D(_MainTex);
        SAMPLER(sampler_MainTex);

        TEXTURE2D(_AOMap);
        SAMPLER(sampler_AOMap);

        struct a2v
        {
            float4 vertex           : POSITION;
            float2 texcoord         : TEXCOORD0;
            float3 normal           : NORMAL;
        };

        struct v2f
        {
            float4 pos              : SV_POSITION;
            float2 uv               : TEXCOORD0;
            float3 normal           : TEXCOORD2;
            float3 viewDir          : TEXCOORD3;
            float4 shadowTexcoord   : TEXCOORD4;
        };
        ENDHLSL
        Pass
        {
            Tags
            {
                "LightMode"="UniversalForward"
            }
            HLSLPROGRAM
            #pragma vertex vert
            #pragma fragment frag


            v2f vert(a2v v)
            {
                v2f o;
                VertexPositionInputs vertexInput = GetVertexPositionInputs(v.vertex);
                o.shadowTexcoord = GetShadowCoord(vertexInput);

                o.pos=TransformObjectToHClip(v.vertex);
                o.uv=TRANSFORM_TEX(v.texcoord,_MainTex);
                o.normal=TransformObjectToWorldNormal(v.normal);
                o.viewDir=normalize(_WorldSpaceCameraPos.xyz-TransformObjectToWorld(v.vertex.xyz));
                return o;
            }

            float4 frag(v2f i) : SV_TARGET
            {
                float4 MainTex = SAMPLE_TEXTURE2D(_MainTex,sampler_MainTex,i.uv);
                float4 AoMap = SAMPLE_TEXTURE2D(_AOMap, sampler_AOMap, i.uv);

                Light myLight=GetMainLight(i.shadowTexcoord);
                float shadow = myLight.shadowAttenuation;

                float3 lightDir=normalize(myLight.direction);
                float3 viewDir=normalize(i.viewDir);
                float3 normalDir=normalize(i.normal);
                float3 halfDir=normalize(lightDir+viewDir);

                float3 UpDir = normalDir.y;
                float3 DownDir = -1.0 * normalDir.y;
                float3 MidDir = 1 - UpDir - DownDir;

                float3 UpColor = _EnvCol_Up.rgb * UpDir;
                float3 MidColor = _EnvCol_Mid.rgb * MidDir;
                float3 DownColor = _EnvCol_Down.rgb * DownDir;

                float3 Ambient = (UpColor + MidColor + DownColor) * AoMap * MainTex * _EnvIntensity;

                float NdotL = saturate(dot(normalDir,lightDir));
                float3 diffuse = NdotL * MainTex;

                float NdotH = saturate(dot(halfDir,normalDir));
                float specular = pow(NdotH, _SpecularRange);

                float3 finalColor = (diffuse + specular) * myLight.color * shadow + Ambient;

                return float4(finalColor,1.0);
            }
            ENDHLSL
        }
        UsePass "Universal Render Pipeline/Lit/ShadowCaster"
    }
}
